SW-FQJ
SEEK WINWIN

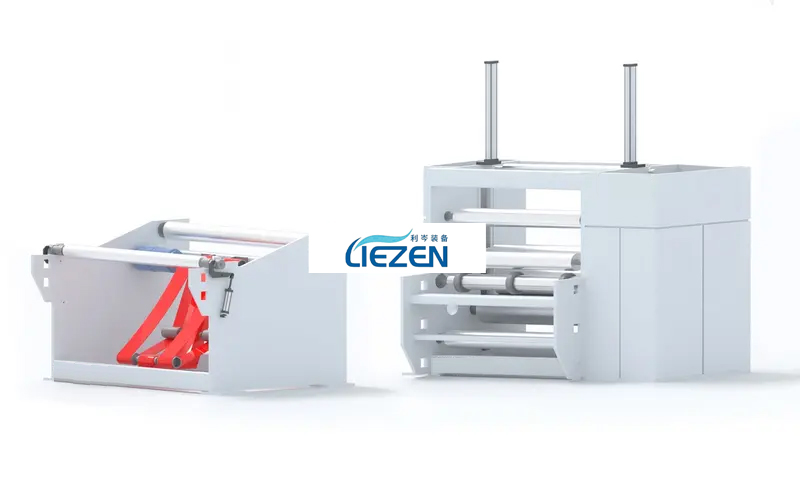

Spunbond Nonwoven Fabric Slitting Machine
Spunbond Nonwoven Fabric Slitting Machine
The non-woven slitting machine is a kind of equipment for trimming and slitting wide-width materials according to different needs in the production process.
ITEM NO. | EFFECTIVE WIDTH | GSM | Max Speed |
SW-fqj | 1600-3200MM | 9-150 | 500m/min |
Equipment Parameters
Design Speed: 500m/min
Max roller dia.: 2000mm
Max winding roller dia.: 1000mm
Mix slitting fabric: 100mm
Change roller mode: Automatic
Rolling diameter measuring: support
Rewinding shaft position feedback: support
The non-woven slitting machine is a kind of equipment for trimming and slitting wide-width materials according to different needs in the production process.
ITEM NO. | EFFECTIVE WIDTH | GSM | Max Speed |
SW-fqj | 1600-3200MM | 9-150 | 500m/min |
Equipment Parameters
Design Speed: 500m/min
Max roller dia.: 2000mm
Max winding roller dia.: 1000mm
Mix slitting fabric: 100mm
Change roller mode: Automatic
Rolling diameter measuring: support
Rewinding shaft position feedback: support
Turnkey Project
Inquiry and consulting support
Latest industry trends
Follow up and show the process at all times
Packing & Delivery
Packing:
As per export standard, they will also be treated before delivery against damage and rusting.
Container:
1.6SMS ----8x40'HQ ;
1.6SSMS---11x40'HQ ;
1.6SMMS----9x40'HQ ;
2.4SMS ----10x40'HQ ;
2.4SSMS---15x40'HQ ;
2.4SMMS----11x40'HQ ;
3.2SMS ----14x40'HQ ;
3.2SSMS---20x40'HQ ;
3.2SMMS----16x40'HQ ;
Turnkey Project
Inquiry and consulting support
Latest industry trends
Follow up and show the process at all times
Packing & Delivery
Packing:
As per export standard, they will also be treated before delivery against damage and rusting.
Container:
1.6SMS ----8x40'HQ ;
1.6SSMS---11x40'HQ ;
1.6SMMS----9x40'HQ ;
2.4SMS ----10x40'HQ ;
2.4SSMS---15x40'HQ ;
2.4SMMS----11x40'HQ ;
3.2SMS ----14x40'HQ ;
3.2SSMS---20x40'HQ ;
3.2SMMS----16x40'HQ ;
The non-woven slitting machine is mainly used to slit wide and wide rolls into various narrow rolls suitable for production needs. The slitting process includes two processes: unwinding and winding.
The tension control of the unwinding and rewinding materials is the key link of the slitting machine. The non-woven fabric slitting is based on the original electronic control system and adds automatic edge-to-edge control, which achieves the desired effect, improves the working performance of the machine, and makes the machine more stable and durable in high-speed operation.
The non-woven slitting machine is mainly used to slit wide and wide rolls into various narrow rolls suitable for production needs. The slitting process includes two processes: unwinding and winding.
The tension control of the unwinding and rewinding materials is the key link of the slitting machine. The non-woven fabric slitting is based on the original electronic control system and adds automatic edge-to-edge control, which achieves the desired effect, improves the working performance of the machine, and makes the machine more stable and durable in high-speed operation.
