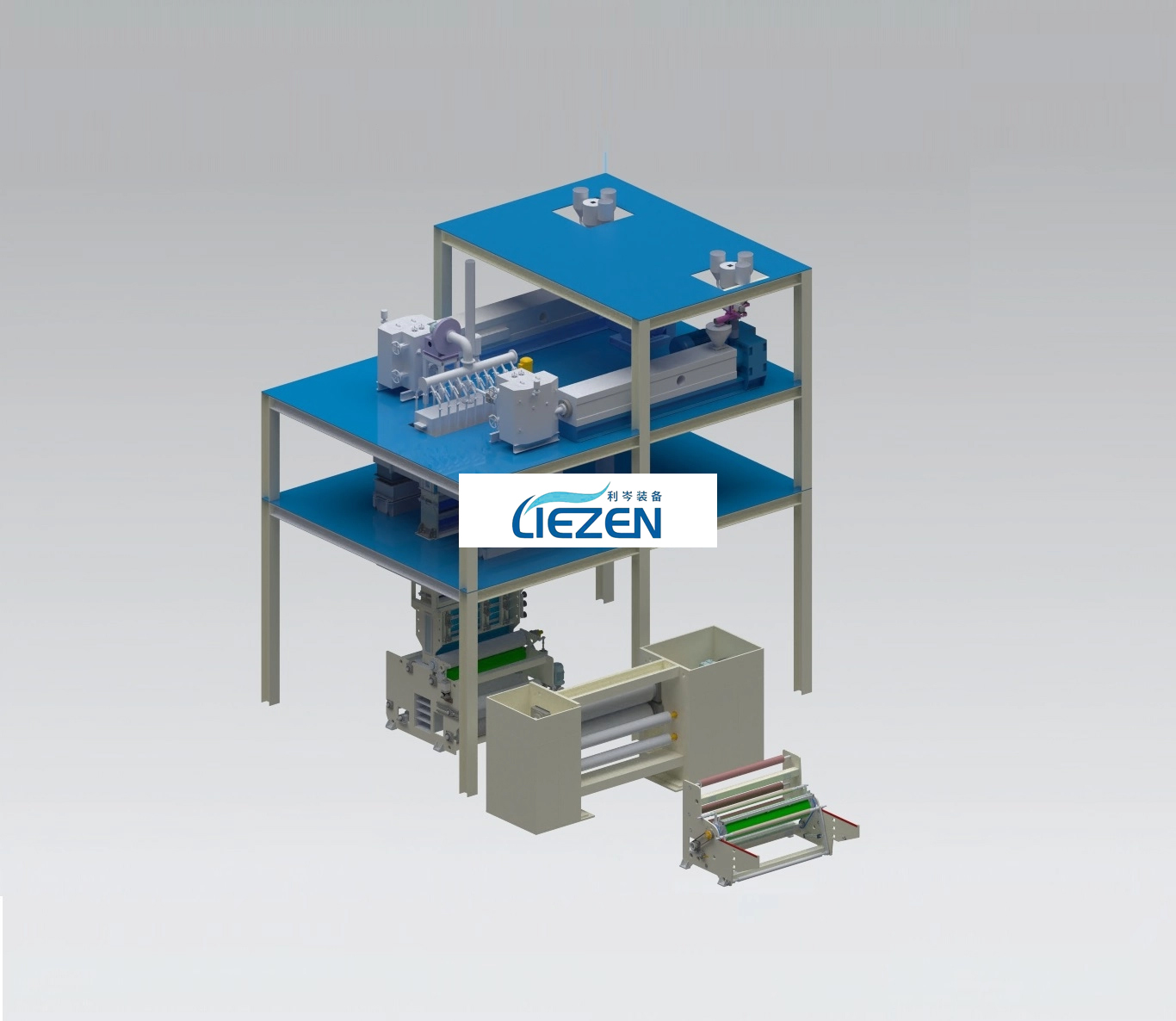

PP/PE Bi-Component Non Woven Fabric Machine
PP/PE Bi-Component Non Woven Fabric Machine
In the production process, the two different thermoplastic polymer chips are micro-emulsioned into the screw extruder through the hopper respectively, softened and melted under the action of high temperature and shear extrusion to form polymers, which are filtered and removed by the melt filter. Impurities are quantitatively fed into the multi-mode components under the action of the metering pump, and extruded by the spinneret in a certain proportion and arrangement.
After that, it is refined and cooled under the action of drafting wind to form bicomponent filaments with certain fineness and strength. Finally, the bicomponent filaments are split, laid, and reinforced to form a non-woven fabric. Bicomponent nonwovens are divided into side-by-side (mainstream), sheath-core and split types.
The main components are PE/PP, PA/PET.
The skin-core type two-component spunbond SS uses polyethylene/polypropylene (PE/PP) as the main raw material, and the raw materials are heated, melted, sheared into a viscous fluid state, and extruded through a spinneret with a concentric structure. Then, the spunbond filament with the skin-core structure is obtained, which is then drawn by high-speed wind, laid on the net, and finally hot-rolled and consolidated into a cloth. Among them, the skin layer is polyethylene (PE) and the core layer is polypropylene (PP).
When using low temperature hot rolling, the skin layer PE is melted and bonded, and the core layer PP maintains the original structure, so that the product has high strength and tearing strength. At the same time, due to the ultra-fine fiber diameter, the product feels very soft and soft, and can be widely used in medical and sanitary materials and other fields.
| TYPE | BI-COMPONENT FILAMENT STRUCTURES |
| Sheath/Core |
|
| Side by Side |
|
| Split type |
|
In the production process, the two different thermoplastic polymer chips are micro-emulsioned into the screw extruder through the hopper respectively, softened and melted under the action of high temperature and shear extrusion to form polymers, which are filtered and removed by the melt filter. Impurities are quantitatively fed into the multi-mode components under the action of the metering pump, and extruded by the spinneret in a certain proportion and arrangement.
After that, it is refined and cooled under the action of drafting wind to form bicomponent filaments with certain fineness and strength. Finally, the bicomponent filaments are split, laid, and reinforced to form a non-woven fabric. Bicomponent nonwovens are divided into side-by-side (mainstream), sheath-core and split types.
The main components are PE/PP, PA/PET.
The skin-core type two-component spunbond SS uses polyethylene/polypropylene (PE/PP) as the main raw material, and the raw materials are heated, melted, sheared into a viscous fluid state, and extruded through a spinneret with a concentric structure. Then, the spunbond filament with the skin-core structure is obtained, which is then drawn by high-speed wind, laid on the net, and finally hot-rolled and consolidated into a cloth. Among them, the skin layer is polyethylene (PE) and the core layer is polypropylene (PP).
When using low temperature hot rolling, the skin layer PE is melted and bonded, and the core layer PP maintains the original structure, so that the product has high strength and tearing strength. At the same time, due to the ultra-fine fiber diameter, the product feels very soft and soft, and can be widely used in medical and sanitary materials and other fields.
| TYPE | BI-COMPONENT FILAMENT STRUCTURES |
| Sheath/Core |
|
| Side by Side |
|
| Split type |
|
Turnkey Project
Inquiry and consulting support
Latest industry trends
Follow up and show the process at all times
Packing & Delivery
Packing:
As per export standard, they will also be treated before delivery against damage and rusting.
Container:
1.6S ---- 4x40'HQ ;
1.6SS--- 8x40'HQ ;
1.6SSS----11x40'HQ ;
2.4S ---- 6x40'HQ ;
2.4SS--- 11x40'HQ ;
2.4SSS----16x40'HQ ;
3.2S ---- 7x40'HQ ;
3.2SS--- 14x40'HQ ;
3.2SSS----19x40'HQ ;
Turnkey Project
Inquiry and consulting support
Latest industry trends
Follow up and show the process at all times
Packing & Delivery
Packing:
As per export standard, they will also be treated before delivery against damage and rusting.
Container:
1.6S ---- 4x40'HQ ;
1.6SS--- 8x40'HQ ;
1.6SSS----11x40'HQ ;
2.4S ---- 6x40'HQ ;
2.4SS--- 11x40'HQ ;
2.4SSS----16x40'HQ ;
3.2S ---- 7x40'HQ ;
3.2SS--- 14x40'HQ ;
3.2SSS----19x40'HQ ;
The skin-core type two-component spunbond SS uses polyethylene/polypropylene (PE/PP) as the main raw material, and the raw materials are heated, melted, sheared into a viscous fluid state, and extruded through a spinneret with a concentric structure. Then, the spunbond filament with the skin-core structure is obtained, which is then drawn by high-speed wind, laid on the net, and finally hot-rolled and consolidated into a cloth. Among them, the skin layer is polyethylene (PE) and the core layer is polypropylene (PP). When using low temperature hot rolling, the skin layer PE is melted and bonded, and the core layer PP maintains the original structure, so that the product has high strength and tearing strength. At the same time, due to the ultra-fine fiber diameter, the product feels very soft and soft, and can be widely used in medical and sanitary materials and other fields.
| Filter material: | Using the product's excellent properties such as good surface flatness, stable structure, uniform three-dimensional pores, high water permeability and air permeability, high stiffness, and easy discounting, it can be used directly or as a supporting substrate, and a variety of fine filter materials, such as filter paper, filter membrane, Meltblown materials, etc. are compounded into composite filter materials and then used in water treatment, air purification, high-value gas and liquid separation, etc. |
| Reinforcing material for sports shoes: | The product's high tensile strength and tear strength, flatness, stiffness, breathability, structural stability and its small thickness make it the most ideal reinforcement material for high-end sports shoes. |
| Medical and health materials: | It can produce thin products with smooth and uniform surface, stable structure, fluffy, soft, comfortable touch and other characteristics, which can be used as medical materials after three-antibody treatment or film. |
| Waterproof material: | The surface of the product is smooth, stiff, stable in structure, high in tensile strength and tear resistance, small in thickness, as well as uniform and randomly distributed with numerous three-dimensional pore structures, which make it have good wettability. The product does not need dipping and finishing, and can become a thin modified bitumen self-adhesive waterproof membrane tire base fabric and a waterproof coating reinforcement material with excellent performance. |
| Carpet base fabric: | The product has the characteristics of smooth surface, rigidity, stable structure, high tensile strength and tear resistance, uniform three-dimensional pores, strong clamping force, and can be molded. It can be applied to the best high-end tufted carpet base fabric. Including commercial square carpets, car carpets, etc. |
| Geomaterials: | The product has the characteristics of smooth surface, rigidity, stable structure, high tensile strength and tear resistance, high water permeability, corrosion resistance, aging resistance, creep resistance, etc. Engineering drainage plate membrane material or wooden structure building protection and reinforcement material or airport, port, road, water conservancy engineering and other civil engineering reinforcement, isolation, filtration and other materials. |
The skin-core type two-component spunbond SS uses polyethylene/polypropylene (PE/PP) as the main raw material, and the raw materials are heated, melted, sheared into a viscous fluid state, and extruded through a spinneret with a concentric structure. Then, the spunbond filament with the skin-core structure is obtained, which is then drawn by high-speed wind, laid on the net, and finally hot-rolled and consolidated into a cloth. Among them, the skin layer is polyethylene (PE) and the core layer is polypropylene (PP). When using low temperature hot rolling, the skin layer PE is melted and bonded, and the core layer PP maintains the original structure, so that the product has high strength and tearing strength. At the same time, due to the ultra-fine fiber diameter, the product feels very soft and soft, and can be widely used in medical and sanitary materials and other fields.
| Filter material: | Using the product's excellent properties such as good surface flatness, stable structure, uniform three-dimensional pores, high water permeability and air permeability, high stiffness, and easy discounting, it can be used directly or as a supporting substrate, and a variety of fine filter materials, such as filter paper, filter membrane, Meltblown materials, etc. are compounded into composite filter materials and then used in water treatment, air purification, high-value gas and liquid separation, etc. |
| Reinforcing material for sports shoes: | The product's high tensile strength and tear strength, flatness, stiffness, breathability, structural stability and its small thickness make it the most ideal reinforcement material for high-end sports shoes. |
| Medical and health materials: | It can produce thin products with smooth and uniform surface, stable structure, fluffy, soft, comfortable touch and other characteristics, which can be used as medical materials after three-antibody treatment or film. |
| Waterproof material: | The surface of the product is smooth, stiff, stable in structure, high in tensile strength and tear resistance, small in thickness, as well as uniform and randomly distributed with numerous three-dimensional pore structures, which make it have good wettability. The product does not need dipping and finishing, and can become a thin modified bitumen self-adhesive waterproof membrane tire base fabric and a waterproof coating reinforcement material with excellent performance. |
| Carpet base fabric: | The product has the characteristics of smooth surface, rigidity, stable structure, high tensile strength and tear resistance, uniform three-dimensional pores, strong clamping force, and can be molded. It can be applied to the best high-end tufted carpet base fabric. Including commercial square carpets, car carpets, etc. |
| Geomaterials: | The product has the characteristics of smooth surface, rigidity, stable structure, high tensile strength and tear resistance, high water permeability, corrosion resistance, aging resistance, creep resistance, etc. Engineering drainage plate membrane material or wooden structure building protection and reinforcement material or airport, port, road, water conservancy engineering and other civil engineering reinforcement, isolation, filtration and other materials. |
